Power Equipment Solution

We provide integrated solutions that combine the supply of power equipment such as transformers, GIS, and circuit breakers with partial discharge monitoring, dissolved gas analysis, ES/DS visual monitoring, and comprehensive preventive diagnostic systems to enhance the safety, reliability, and operational visibility of power facilities.

Transformers

For transmission and distribution power networks, data centers, and industrial facility projects.

Transmission & Distribution

송전급 GIS

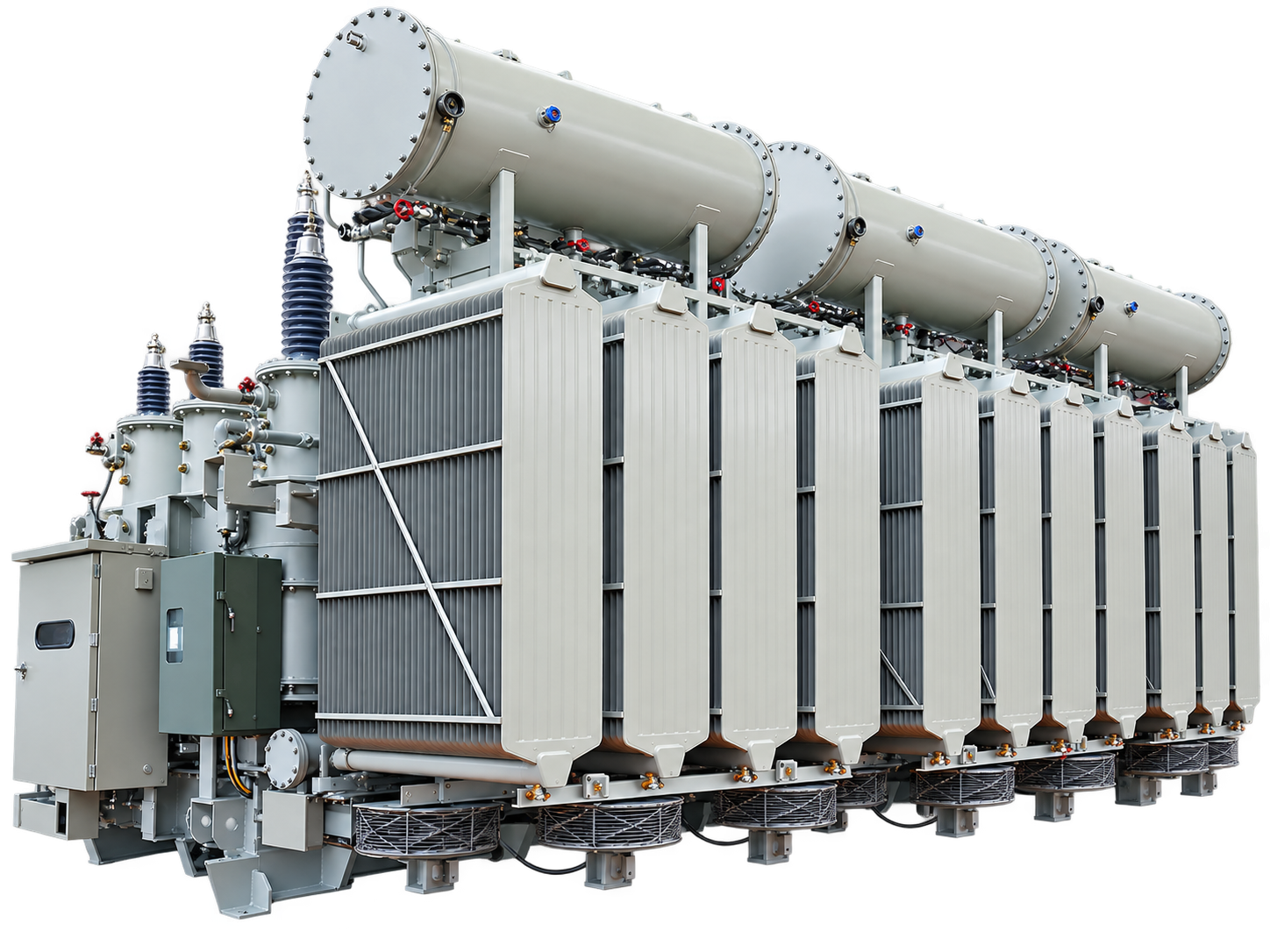

Transmission

  • Capacity : Up to 280MVA
  • Voltage : Up to 345kV
  • Frequency : 60Hz
  • Phase : 1 Ph / 3 Ph
  • Insulation : Class A
  • Cooling : ONAN, ONAF
  • Standard : IEEE, UL, IEC, CSAz
  • Lead Time : 24 months
배전급 GIS

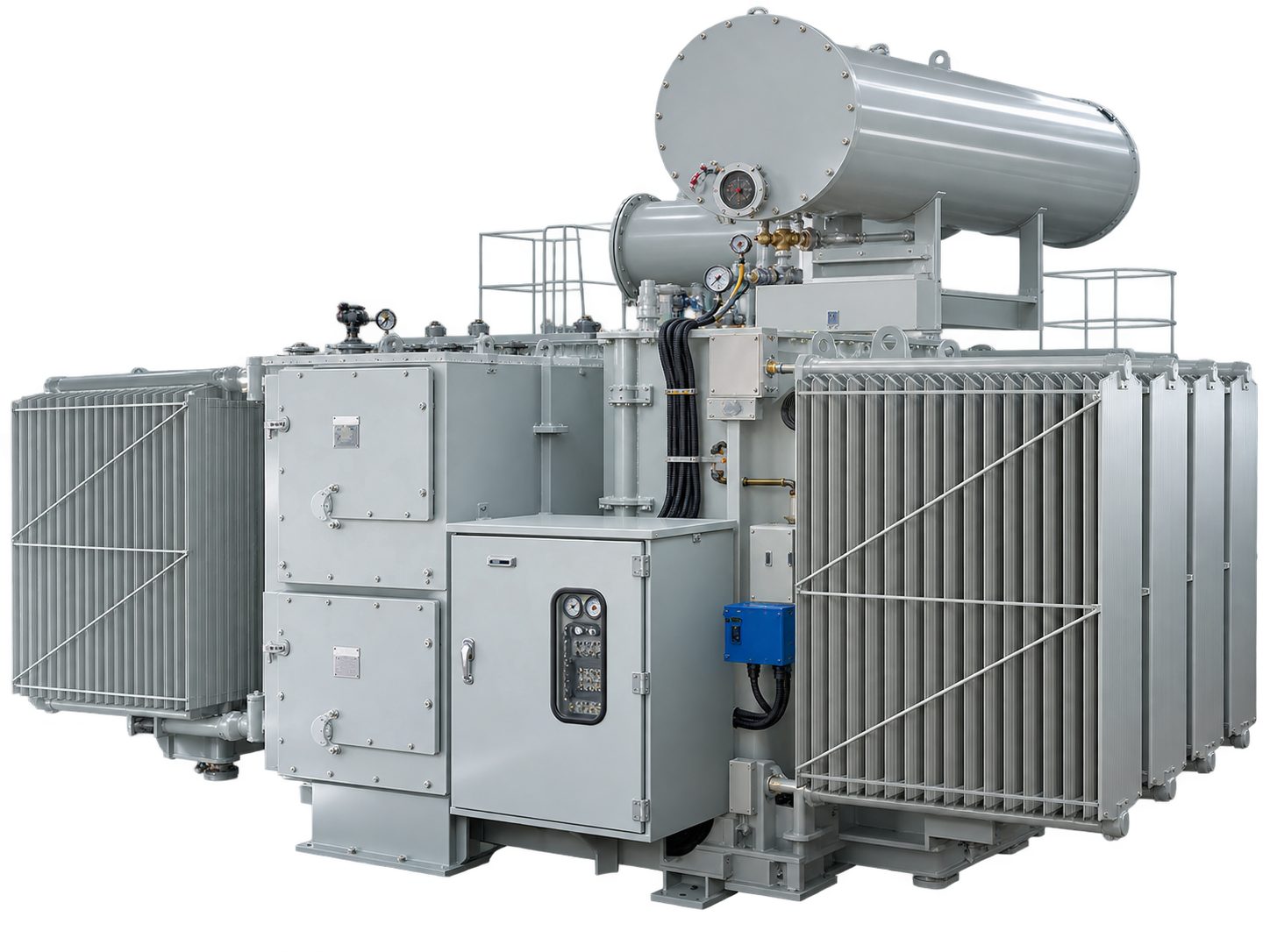

Distribution

  • Capacity : Up to 120MVA
  • Voltage : Up to 69kV
  • Frequency : 60Hz
  • Phase : 1 Ph / 3 Ph
  • Insulation : Class A
  • Cooling : ONAN, ONAF
  • Standard : IEEE, UL, IEC, CSAz
  • Lead Time : 18 months or less
VCB 판넬

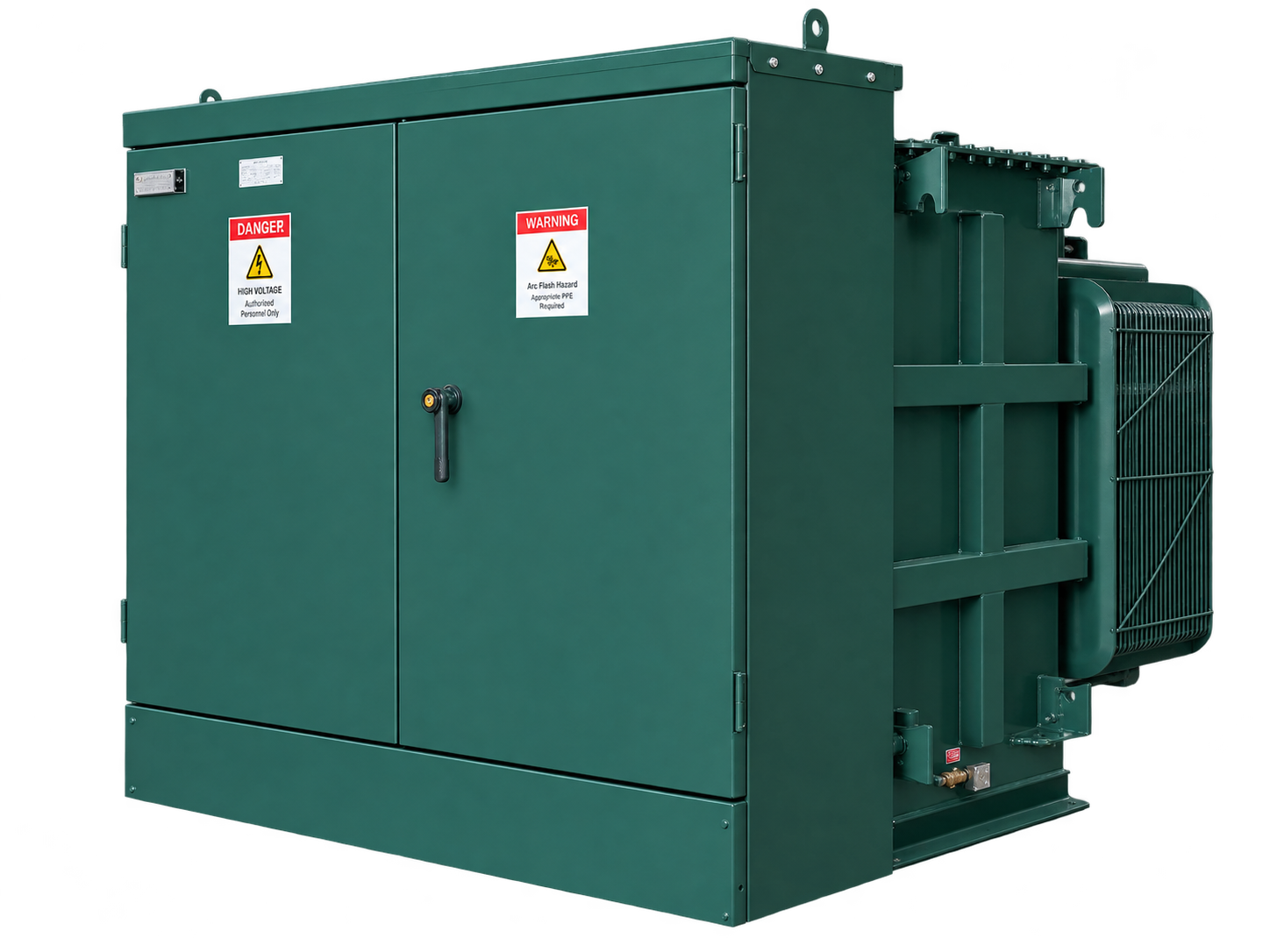

Pad-mounted

  • Capacity : Up to 10MVA
  • Voltage : Up to 36kV
  • Frequency : 60Hz
  • Phase : 1 Ph / 3 Ph
  • Insulation : Class A
  • Cooling : ONAN, ONAF
  • Standard : IEEE, UL, DOE, NEMA
  • Lead Time : 7 months
VCB 판넬

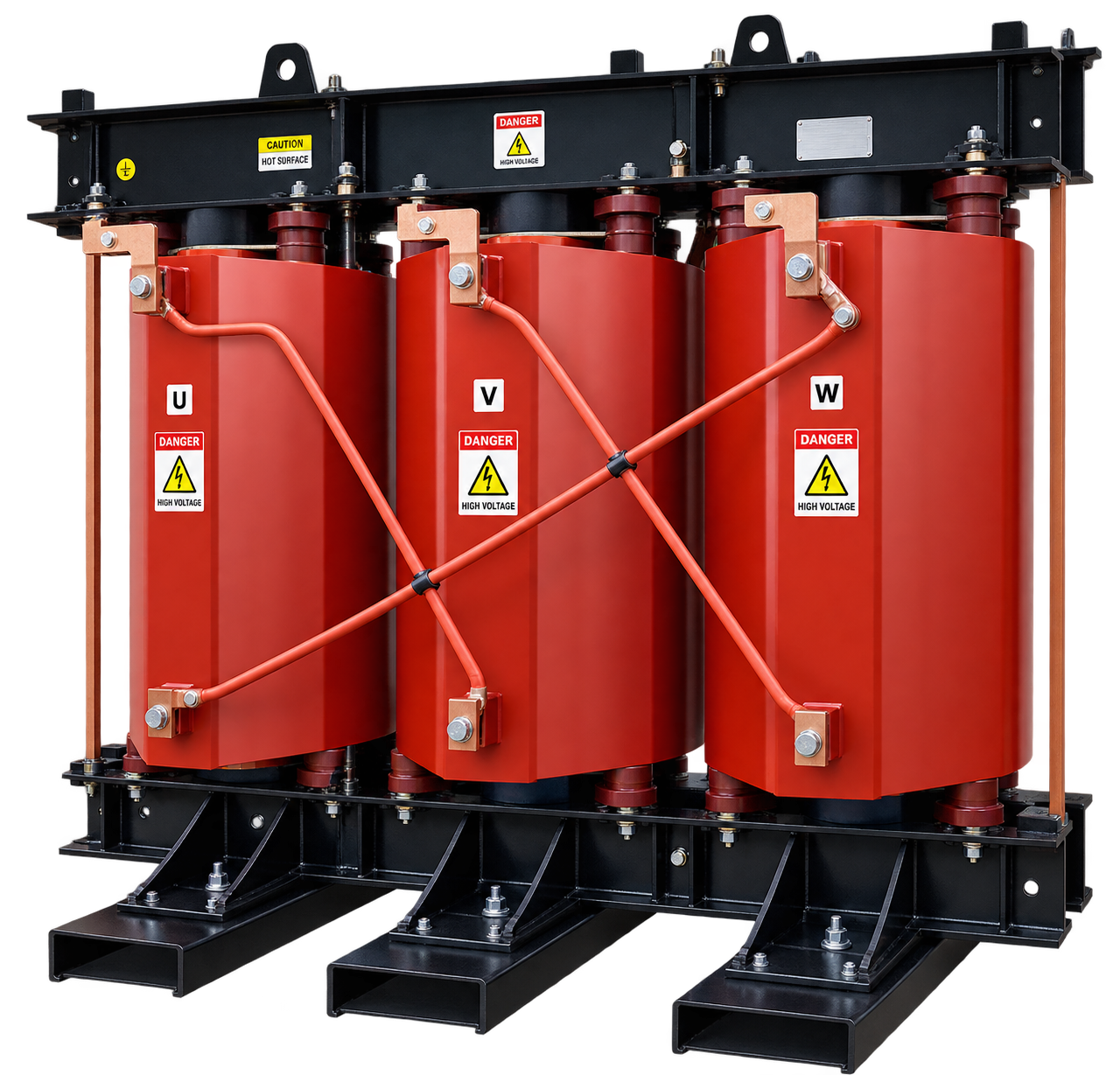

Cast Resin

  • Capacity : Up to 30MVA
  • Voltage : Up to 36kV
  • Frequency : 60Hz
  • Phase : 1 Ph / 3 Ph
  • Insulation : Class B, F
  • Cooling : AN, ANAF
  • Standard : IEEE, UL, DOE, CSA
  • Lead Time : 6 months or less
저압 수배전반

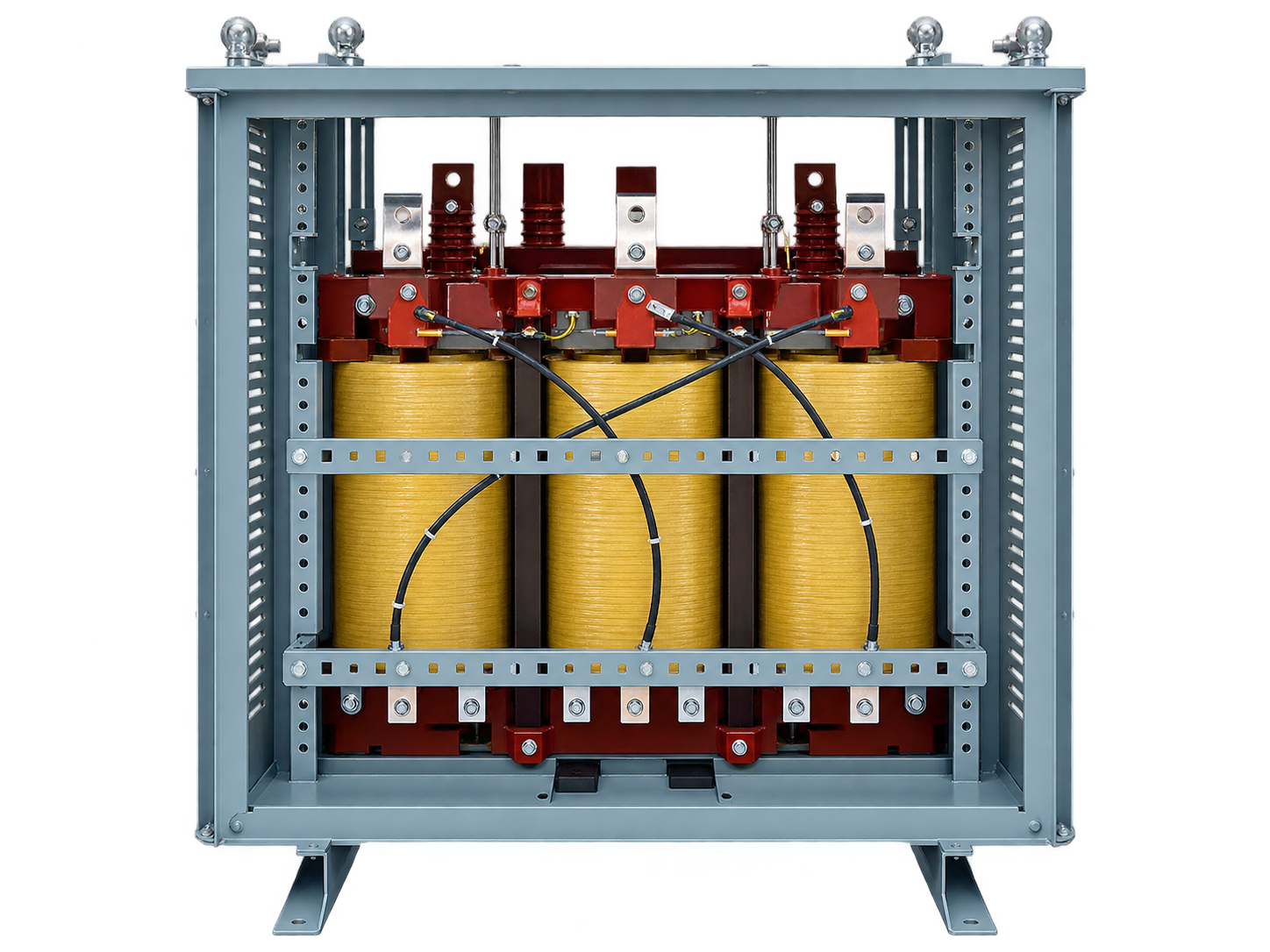

Dry

  • Capacity : Up to 10MVA
  • Voltage : Up to 24kV
  • Frequency : 60Hz
  • Phase : 1 Ph / 3 Ph
  • Insulation : Class F, H
  • Cooling : AN
  • Standard : IEEE, IEC, JEC, NEMA
  • Lead Time : 6 months or less

GIS & Circuit Breakers

We supply GIS and circuit breaker product lines applicable to transmission and distribution systems, industrial power facilities, and data center power infrastructure.

Transmission & Distribution GIS / Circuit Breaker

송전급 GIS

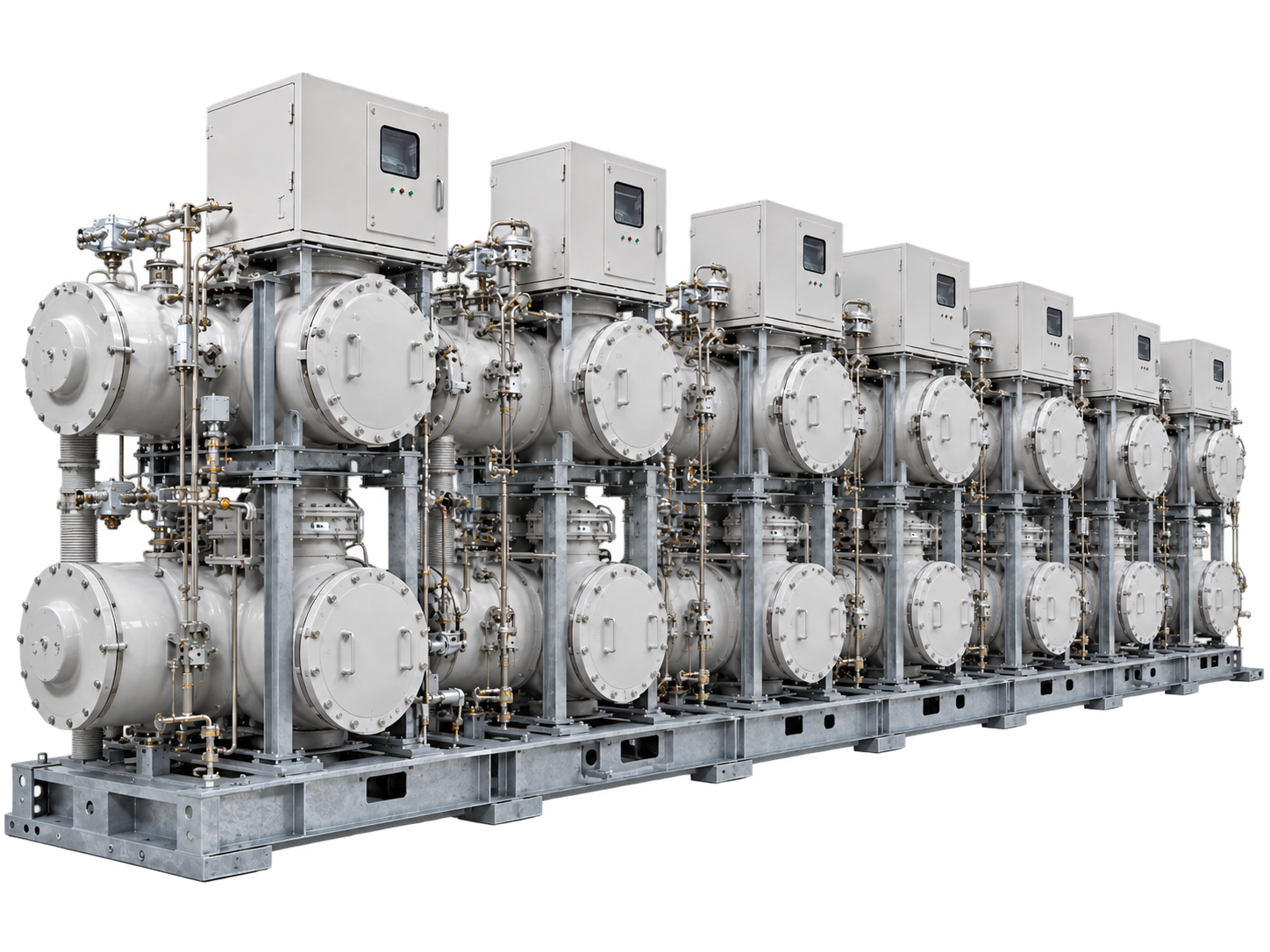

Transmission

  • Rated Voltage : 72.5 ~ 420 kV
  • Interrupting Current : 20 ~ 63 kA
  • Rated Current : 1,200 ~ 6,300 A
  • Insulating Medium : SF6 / Dry-Air
  • Frequency : 60 Hz
  • Applied Standard : IEC 62271-100 / IEC 60517
  • Lead Time : 24 months
배전급 GIS

C-GIS

  • Rated Voltage : 25.8 / 29 / 36 kV
  • Interrupting Current : 20 ~ 40 kA
  • Rated Current : 630 ~ 2,500 A
  • Insulating Medium : SF6 / Dry-Air
  • Frequency : 60 Hz
  • Applied Standard : IEC 62271-100 / IEC 62271-200
  • Lead Time : 12 months
VCB 판넬

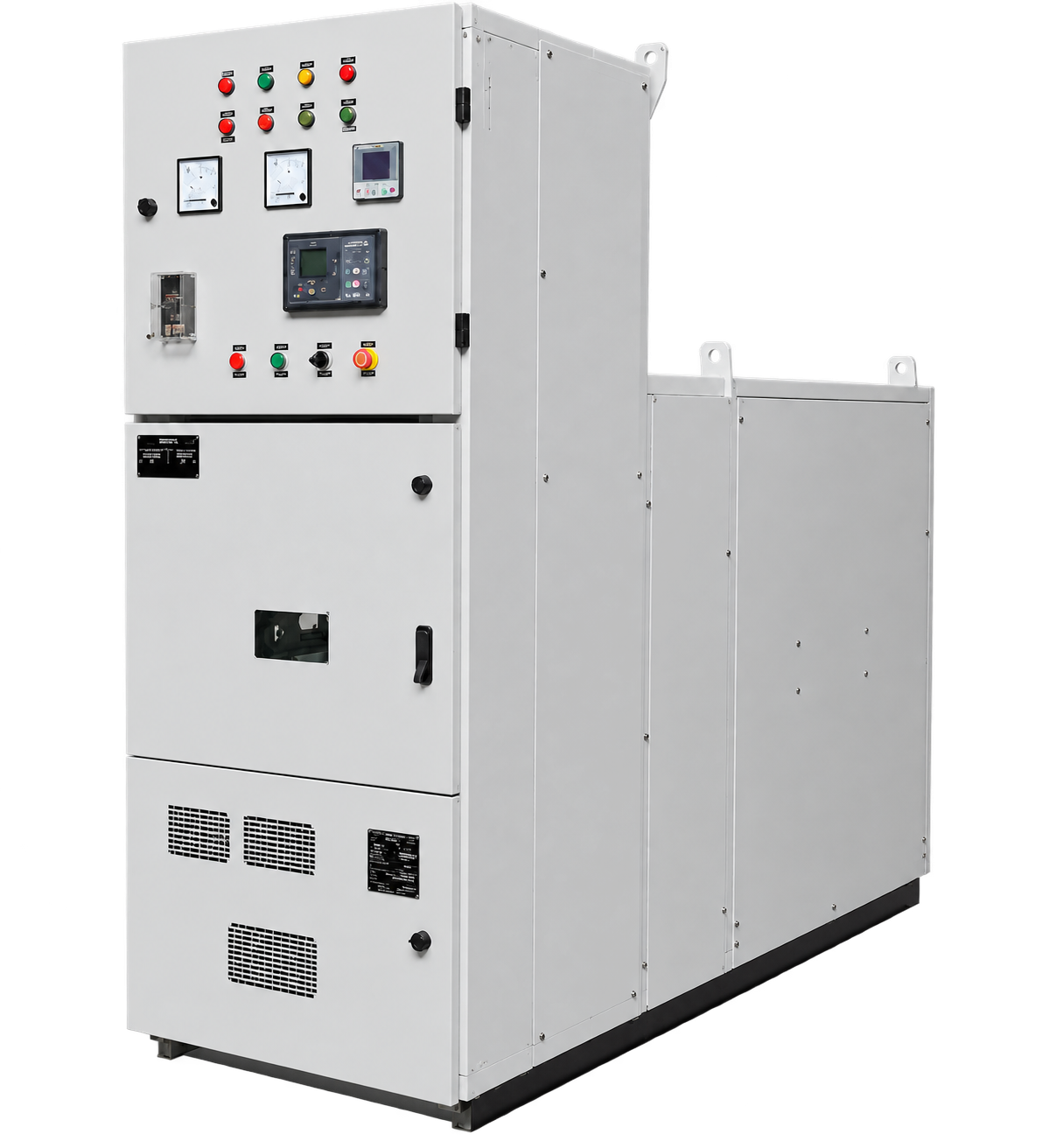

Switchgear Panels

  • Rated Voltage : 25.8 / 36 kV
  • Interrupting Current : 12.5 ~ 40 kA
  • Rated Current : 600 ~ 2,000 A
  • Insulating Medium : Air
  • Frequency : 60 Hz
  • Applied Standard : IEC 60265-1/li>
  • Lead Time : 6 months
  • Etc : Metal-clad / LBS included
저압 수배전반

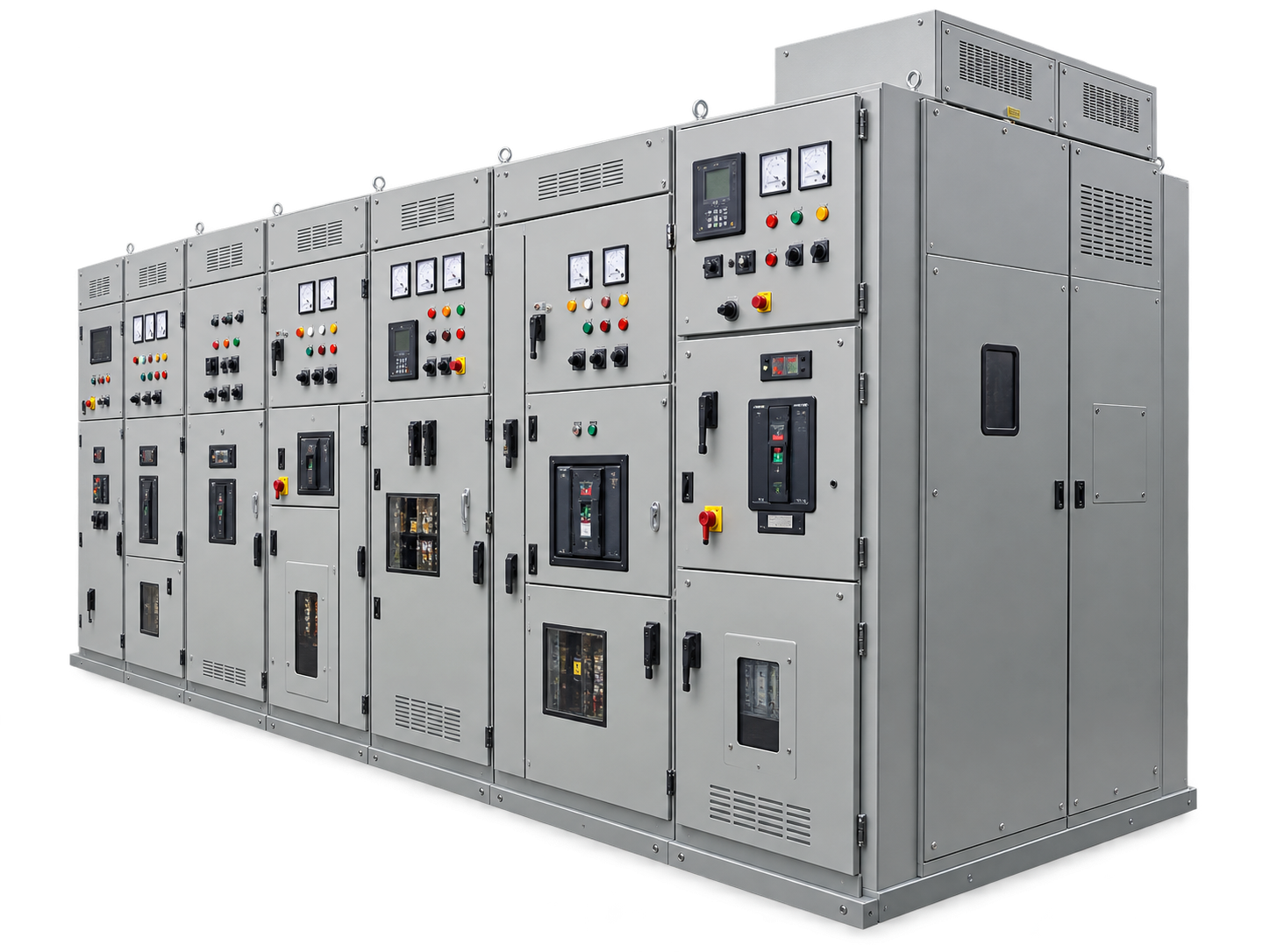

Switchboards

  • Rated Voltage : 380 ~ 690 V
  • Interrupting Current : 50 ~ 100 kA
  • Rated Current : 630 ~ 5,000 A
  • Insulating Medium : Air
  • Frequency : 60 Hz
  • Applied Standard : IEC 60947-1
  • Lead Time : 6 months
  • Etc : ACB / Feeder included

Diagnostic Products & Systems

Power facility diagnostic system centered on field-proven sensors and analysis devices.

GIS Preventive Diagnostics

Transformer Preventive Diagnostics

Integrated Substation Preventive Diagnostics

  • Excellent measurement sensitivity achieved through high-sensitivity sensors and advanced RF design technology
  • Improved site-specific optimization and operational reliability through added functions such as noise suppression
  • High-accuracy root cause analysis and risk assessment enabled by proprietary diagnostic algorithms
CONTACT

Product Inquiry

Inquiries are available for transformers, GIS, circuit breakers, partial discharge diagnostics, DGA, and integrated monitoring systems.
